How the AR-15 buffer works in the DI system

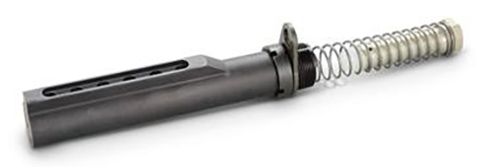

The video opens by framing the AR-15 buffer as a critical component in any direct impingement rifle and sets up a “science experiment” around it. The buffer assembly sits in the receiver extension, captured by a retaining pin and driven by a spring. When a round is fired, gas from the barrel drives the bolt carrier rearward; the buffer and spring slow that movement, then push the carrier forward again to strip and chamber the next round. Without this system, the rifle would function as a single-shot. The host introduces the goal of examining how different buffer weights influence ejection patterns, felt recoil, and reliability. This foundation makes clear that the buffer is not just a simple weight, but a timing and recoil-management component that directly affects how smoothly and consistently an AR-15 cycles.
Buffer weights, rifle buffers, and test plan
Next, the video details specific buffer options and their approximate weights: a standard carbine buffer at about 3 oz, an H buffer at 3.8 oz, an H2 at 4.6 oz, an H3 at 5.1 oz, and an H4 at roughly 6.8–6.88 oz. PWS is credited for supplying the buffers and Unlimited Ammo for the ammunition. Heavier pistol-caliber buffers around 8 oz are briefly discussed in the context of AR9-style direct blowback guns, which lack a gas system and rely solely on chamber pressure to drive the bolt, often producing harsher recoil and requiring more mass. The video contrasts carbine buffers with longer rifle buffers, which weigh around 5 oz and are used in fixed-stock setups with longer tubes. A structured test plan is outlined: using a 16-inch DI rifle and a 10.3-inch DI rifle, each will be fired with five-round strings across the buffer range, both suppressed and unsuppressed, to evaluate recoil and ejection behavior.
16-inch DI rifle testing from carbine to H4 buffers
The testing begins on a 16-inch direct impingement rifle, running through carbine, H, H2, H3, and H4 buffers. Live-fire footage shows that the rifle cycles reliably with each buffer weight, including the heavy 6.8 oz H4. The shooter notes that changes in felt recoil between incremental buffer steps are surprisingly subtle rather than dramatic. However, there is a slight but noticeable reduction in muzzle rise and a smoother impulse as buffer weight increases. The segment emphasizes that in DI rifles the recoil impulse is relatively sharp because gas directly drives the carrier, so adding buffer mass can help tame that impulse while still returning the bolt forward with authority. Even with the H4 unsuppressed, the rifle continues to run well, though the host raises the question of how carbon buildup and fouling over time might affect long-term reliability with such a heavy buffer.
Suppressed 16-inch rifle: buffer weight and ejection patterns
Attention shifts to suppressed testing on a Geissele rifle with an intermediate gas system and a SureFire SOCOM 556 RC2 suppressor. The same progression of buffers—3 oz carbine, H, H2, H3, and H4—is run to observe how added backpressure from the can interacts with buffer mass. Ejection patterns and recoil are closely watched. The H4 buffer delivers the most controlled performance, with the smoothest impulse and the most desirable ejection angle. The video explains how ejection angle helps diagnose gas tuning: brass thrown forward of the shooter indicates an over-gassed system, while brass far to the rear can suggest under-gassing or potential short-stroking. An ejection pattern around 3:00 to 4:30 is described as ideal. This segment reinforces that buffer weight is a key tuning tool, especially once a suppressor increases gas and cyclic speed.
Mk18 10.3-inch testing: unsuppressed buffer performance
The focus moves to a Daniel Defense Mk18 with a 10.3-inch barrel and carbine-length gas system, a setup known for being relatively gassy. The same buffer progression is started, initially highlighting over-gassed behavior with lighter buffers, including more forward ejection and a snappier recoil impulse. As buffer weight increases through H, H2, and H3, ejection patterns shift rearward and recoil becomes more manageable. Unsuppressed testing with H3 (5.1 oz) and H4 (6.8 oz) shows that the short-barreled rifle still extracts and ejects reliably, and the overall feel improves. However, there is concern that running an H4 in this configuration might reduce reliability once the gun becomes dirty or underpowered ammunition is introduced. This segment underscores the balance between softening recoil and maintaining enough energy for consistent cycling in short, carbine-gas setups.
Mk18 with suppressor: heavy buffers and reliability
A SureFire SOCOM RC2 suppressor is then attached to the Mk18, and the buffer tests are repeated. Starting with the 3 oz carbine buffer, then moving to H (3.8 oz) and H2 (4.6 oz), the rifle clearly remains over-gassed, with brass ejecting forward despite incremental improvements in recoil. The heavier H3 and H4 buffers are then tested suppressed. With these, the rifle still shows slightly over-gassed behavior but runs reliably, including last-round bolt hold-open during a full magazine dump. The H4 in particular delivers a more controlled recoil impulse and better ejection pattern than the previously used H2 in this older, gassy Mk18. The host concludes that H4 may be a better choice for this specific rifle when shot suppressed, while cautioning that going to even heavier pistol-style buffers around 8 oz would likely compromise reliable cycling.
Conclusions, long-term wear, and future buffer testing
The closing segment reflects on expectations versus actual results. It was anticipated that the light 3 oz carbine buffer would produce dramatically more forward ejection and harsher recoil, but perceived recoil differences across buffer weights were modest, while ejection pattern shifts were obvious. The discussion emphasizes avoiding an over-gassed AR-15 to reduce long-term wear on components. The example rifle has thousands of rounds and about seven years of use on original OEM parts, with only a switch to an H2 buffer once it was mostly shot suppressed. There is interest in running an H4 buffer for several hundred to a thousand rounds to see if reliability issues emerge over time. The video closes by suggesting future testing on a PWS piston-driven rifle with an adjustable gas system, exploring various buffer weights, barrel lengths, and suppressed versus unsuppressed configurations to further refine tuning strategies.
