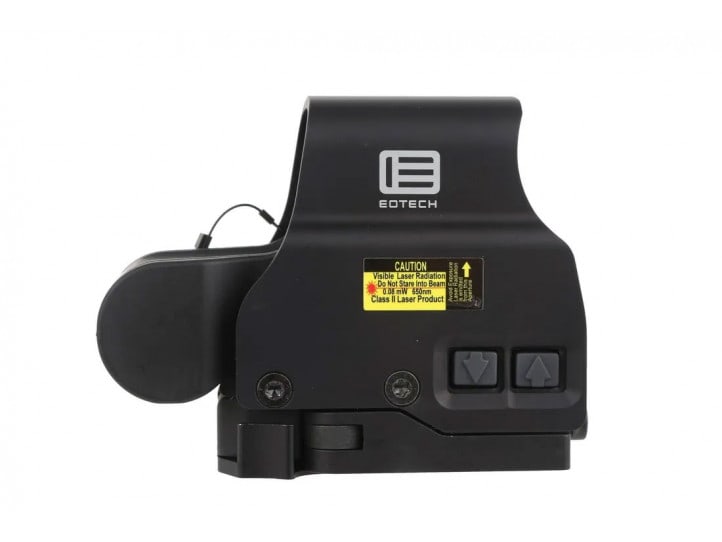

Eotech EXPS20 EXPS2 HWS Black Anodized 1x 68 MOA Ring/Red Dot Reticle

Features:

• Reticle is a 65 MOA circle with 1 MOA aiming dot
• Single transverse 123 battery to reduce sight length
• Shortened base only requires at most 2 3/4 inch of rail space
• Battery cap and latch are eliminated and replaced with a simple O-ring tethered cap; better sealing is achieved
• Battery compartment is now separated from the base to allow it to hover over the delta ring of the rifle
• Average battery life at brightness level 12 is roughly 600 hours
• Side buttons with a single quick detach throw lever

Operation:

• Optics: Transmission holography - parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)
• Weight: 11.2 oz (317grams)
• Temperature: -40 to 150 F
• Waterproof: Submersible to 10 ft depth
• Sealing: Fogproof internal optics
• Color/Finish: Non reflective black with hard coat finish
• Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width variation
• Return to Zero: Repeatable to within 2 MOA after re-mounting

Heads-Up-Display Window:

• Optical Surfaces: Anti-glare coating
• Window Dimensions: 1.20" x 0.85" (30 x 23mm)
• Front Window Material: 1/8" solid glass
• Rear Window Material: Shatter resistant laminate (3/16" thick)
• Field of View (100 yds): 30 yds (28m) at a 4" eye relief
• Reticle: 65MOA ring with single 1MOA dot

Electrical:

• Brightness Adjustment Range: 146,000:1 brightest to lowest
• Power Source: (1) 123 lithium battery
• Battery Life: 600 continuous hours at nominal setting 12
• Brightness Settings: 20 settings with scrolling feature
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
