The ATI Alpha Maxx Rifle

Introduction to the ATI Alpha Maxx 5.56 AR-15

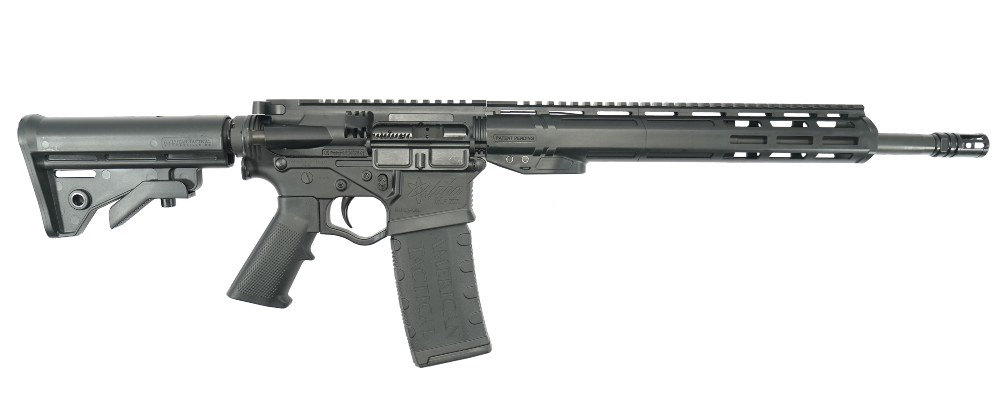

The video presents the American Tactical ATI Alpha Maxx 5.56 NATO AR-15. This model uses a 16-inch barrel and combines carbon fiber, steel, and polymer components throughout the rifle. The host sets up the overview by noting that the Alpha Maxx is designed as a lightweight AR-15 platform while still incorporating metal reinforcement in key areas. The focus of the discussion is on what this particular configuration offers in terms of construction, features, and handling, rather than on accessories or aftermarket modifications.

Barrel, handguard, sights, and front-end features

At the front, the rifle features a 16-inch barrel capped with a birdcage-style A2 flash hider. It uses a 13-inch polymer handguard that provides ample space for a C-clamp style support hand grip. The handguard includes M-LOK slots toward the front for mounting accessories. Flip-up front sights are included in the box, and the rifle also ships with a rear sight, giving the user a complete basic sighting setup out of the package. The combination of the long handguard and standard A2 flash hider is intended to keep the rifle controllable and familiar to users accustomed to typical AR-15 layouts.

Polymer receivers, steel reinforcement, and patents

Both the upper and lower receivers are polymer on the exterior but incorporate steel-reinforced components inside. American Tactical uses patented designs in these areas, including reinforcement within the receivers and a specific trigger pin retention system intended to limit hammer movement during firing. The rifle also uses an overmolded metal buffer tube system, another patented feature. This design provides metal-to-metal contact at the buffer tube and takedown pin areas, increasing rigidity compared to earlier polymer-based AR-15 designs. The overall approach is to keep weight low while reinforcing stress points with steel and metal components.

Controls, trigger characteristics, and grip

The Alpha Maxx includes a QD sling mount on the bottom of the handguard and ships with a standard-capacity AR-15 magazine. The magwell has a slight flare to help guide magazine insertion. Controls follow a mil-spec pattern: a right-side magazine release, a standard bolt release, and a left-side safety selector. The charging handle is metal and mil-spec, operated from the left side in a typical AR-15 manner. The trigger guard and trigger are polymer. The trigger pull has a small amount of grit but breaks predictably near a 90-degree point, with minimal overall travel. The reset involves a short movement and a distinct return, making it straightforward to fire multiple rounds in succession. An A2-style pistol grip provides moderately aggressive side texturing, horizontal texturing on the backstrap, and a finger groove to help maintain a secure hold during firing.

Buffer tube, stock design, and sling mounting

Moving to the rear, the rifle’s buffer tube shows exposed metal as part of the overmolded metal buffer tube system. The castle nut and back plate are also metal, contributing to durability at the rear of the receiver. The stock resembles an A2-style profile but is an American Tactical design with their branding. It is adjustable for length of pull, allowing the shooter to set a preferred position. The stock includes a QD sling mount as well as a more traditional sling attachment point, enabling different two-point sling configurations that correspond with the front QD mount. Grooves on the rear of the stock help it seat more securely on the shoulder, reducing slippage during recoil.

Overall specs, weight, and closing thoughts

In summary, the ATI Alpha Maxx features patented upper and lower receivers that combine carbon fiber, steel, and polymer components. It uses a 13-inch handguard, a 16-inch barrel with an A2 flash hider, and includes both front and rear sights in the box, along with a standard-capacity magazine. The American Tactical stock provides two QD sling points on the rifle, supporting a two-point QD sling setup if desired. The overall length is approximately 40 inches, and the rifle weighs about 5.5 pounds. For an AR-15 platform, this weight is notably light, reflecting the extensive use of polymer with strategic metal reinforcement. The video concludes by inviting user feedback and experiences with the American Tactical Alpha Maxx after range use.
